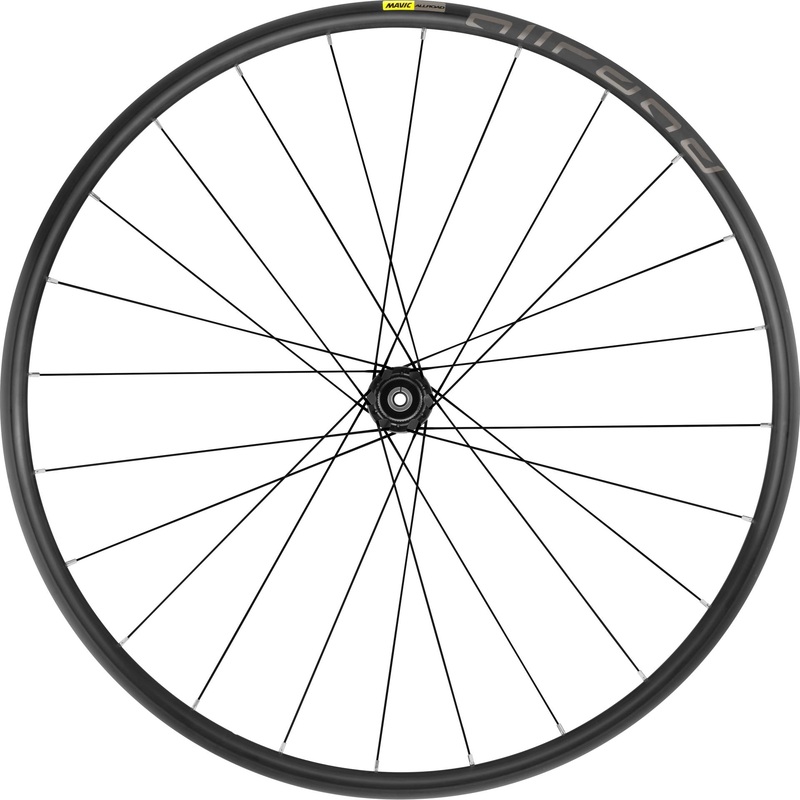

This dependable UST road wheel gives you the confidence you need to tackle rugged, adventurous roads with smooth control.

With a wide 23mm rim profile that’s optimized for high-volume tires, this UST Road Tubeless wheel system is built for adventure.

Perfect for riding on rough roads, gravel or dirt, it gives you the smooth-riding performance of tubeless tires and makes it easy to set them up without any hassles. Low rolling resistance and a reduced risk of punctures add up to a better overall riding experience, especially on rugged terrain.

The wheels are engineered for the unique demands of disc brakes, built up with 24 straight-pull spokes, which are stronger than J-bend spokes. So wherever the road goes, and however rough it gets, you’re ready to keep things rolling.

Purpose-built for riding rough roads, gravel, or dirt.

• 22mm wide rim takes the tire up to 62mm.
• UST Road Tubeless technology improves comfort and rolling resistance and reduces the risk of punctures.
• Compatible with all standard retention systems.

Proven performance and reliability at an attainable cost.

• High-quality QRM cartridge bearings.
• Disc-brake-specific, sleeved-style rim technology.
• Straight-pull round spokes, which are stronger than J-bend spokes.

Rolling efficiency and nimble ride quality

• Sleeve joint rim minimizes weight.
• Consistent and stable spoke lacing.
• Low-friction hubs.

Specifications:

Rims

• Material: S6000 Aluminum
• Height: 22 mm
• Joint: sleeved
• Internal width: 23 mm
• Drilling: traditional (front/rear 24 holes)
• Braking: disc
• ETRTO size: 622x23TC
• Tire: UST Tubeless Ready – Use with Mavic Tubeless Tape

Spokes

• Material: steel
• Shape: straight, round (front and rear)
• Nipples: steel, ABS, incolor
• Lacing: crossed 2 (front and rear)

Hubs

• Body material: aluminum
• Disc standard: 6 Bolts
• Axle material: aluminum
• Axle size: front 12×100 / rear 12×142 – Convertible to quick release with included adapters
• Freewheel technology: Instant Drive 360
• Freewheel: Shimano HG road
• Bearing technology: QRM automatic setting – sealed cartridge

Intended use

• ASTM CATEGORY 2: road and offroad with jumps less than 15cm
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn’t exceed 120kg, bike included
• Maximum tyre pressure: 5.5bar/80PSI with a 28mm tyre – 3.25bar/47PSI with a 64mm tyre
• Recommended tire sizes: 28 to 64 mm (1.1 to 2.5)
• Max. Pressure: see indication on wheel and tire. If they differ, use the lowest of the 2
• Weight:1020g
