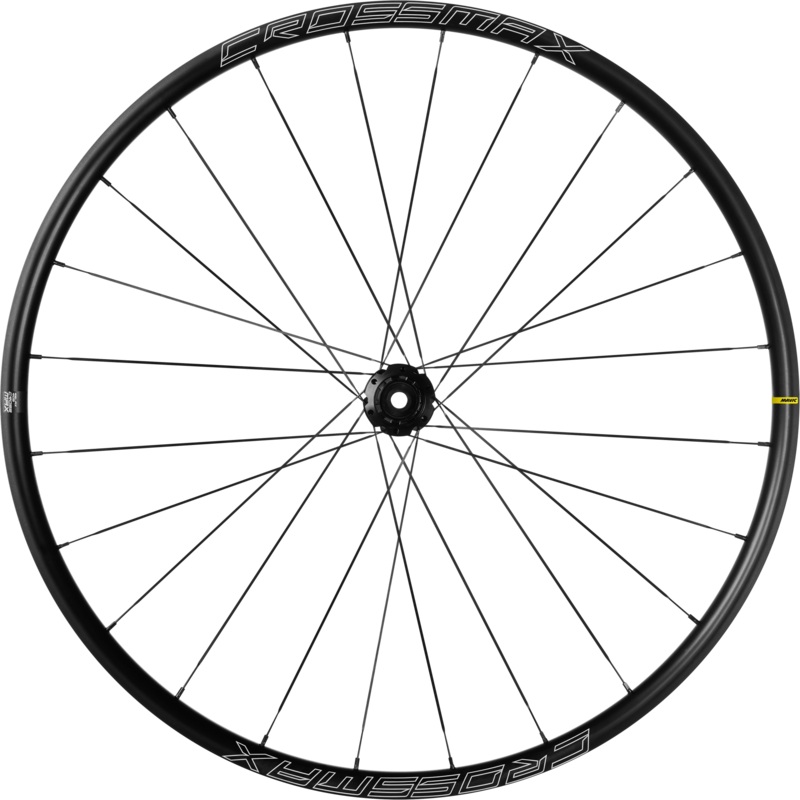

Featuring Infinity hubs, ID360 freewheel and Maxtal welded rims, this modern XC wheel lives up to the legendary Crossmax name: strong, reliable, and tubeless ready.

The name Crossmax has a long history in the world of XC riding and racing and this new wheelset lives up to its name with many of the same features and technologies as pro-level XC race wheels, but at a far more attainable price. One of the key factors is our UST technology, which allows for easy setup of tubeless ready tires and gives you all the associated benefits including better traction and control, a smoother ride quality and a reduced risk of punctures. The rim is welded for added reliability and features a 25mm internal width with a hookless profile.

The Infinity lighter hub design optimizes lateral stiffness and spokes tension. Our Instant Drive 360 freewheel with a double ratchet system provides fast engagement and top-level reliability.

The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies.
The Crossmax is available in 29”, with 6-bolt or center lock brake rotors and Boost axles (15×110 front and 12×148 rear) or standard axles (15×100 front and 12×142 rear). It is also available in 27.5” with 6-bolt or center lock brake rotors and Boost axles (15×110 front and 12×148 rear), and 6-bolt rotor with standard axles (15×100 front and 12×142 rear).

The wheel is delivered with valves, replacement spokes, and accessories.

FEATURES

• Light and durable
• Welded rim construction
• Light and strong rim profile and a perfectly sealed rim
• Dynamic and agile
• 24 double butted spokes
• Infinity hub platform
• ID360 double ratchet freewheel system
• Tubeless ready technology
• A tubeless rim profile and tubeless tape make it easy to ride tubeless tires for more comfort and control

SPECIFICATIONS

Rims

• Material: Maxtal
• Height: 21 mm
• Joint: SUP welding technology
• Internal width: 25 mm
• Drilling: traditional (front/rear 24 holes)
• Braking: disc
• Profile: asymmetrical and hookless
• ETRTO size: 622x25TSS
• Tire: UST Tubeless Ready – Use with Mavic Tubeless Tape

Spokes

• Material: steel
• Shape: straight, extra-flat, constricted, antirot (front and rear)
• Nipples: steel, ABS, black
• Lacing: crossed 2 (front and rear)

Hubs

• Body material: aluminum
• Body design: INFINITY
• Disc standard: Center Lock
• Axle material: aluminum
• Axle size: 12×148
• Freewheel technology: Instant Drive 360
• Freewheel: Shimano MS
• Bearing technology: QRM automatic setting – sealed cartridge

Intended use

• ASTM CATEGORY 3: CROSS COUNTRY
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn’t exceed 150kg, bike included
• Maximum tyre pressure: 4.1bar/59PSI with a 28mm tyre – 2.45bar/36PSI with a 64mm tyre
• Recommended tire sizes: 28 to 64 mm (1.1 to 2.5)
• Weight: 950g
