BUILT TO FLY

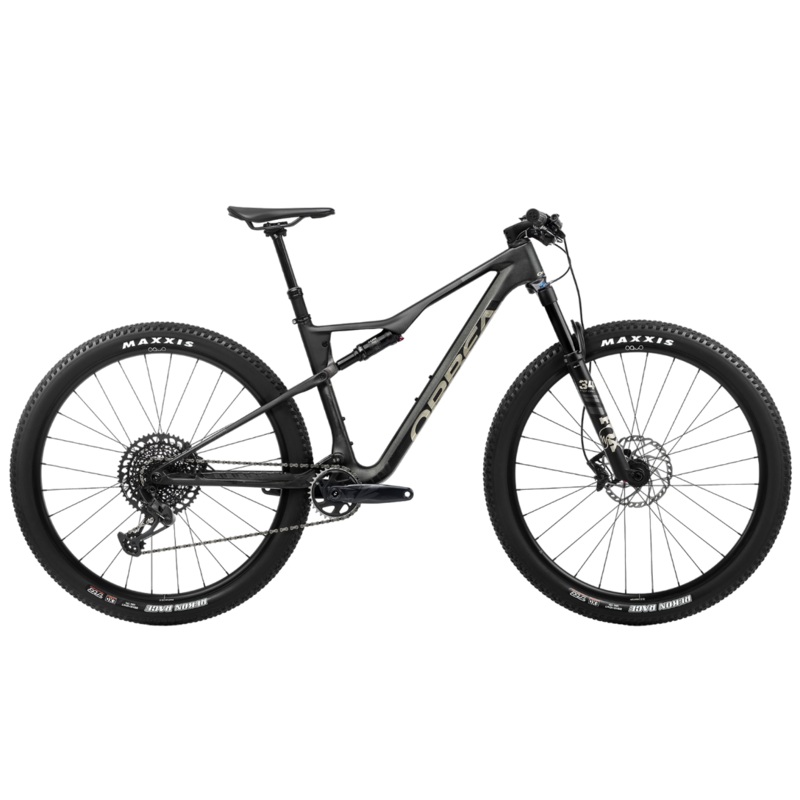

Take control. Don’t accept compromises. The Oiz isnt down-country or trail; its a 120mm XC race machine that looks as good as it rides. With modern geometry and clever suspension, designed from the start around 120mm, the Oiz brings extra fun to every ride without compromising weight or efficiency. Simply put, the Oiz is the fastest XC bike to leave our factory in over 180 years.

120mm of Uncompromised Travel

Historically, choosing between 100mm and 120mm required a compromisecontrol at 120mm or the weight and efficiency of 100mm. Oiz refuses to accept that compromise, being designed from the start for longer travel, yet lighter and more efficient than ever.

SIC System

Our SIC system routes the cables along the best path through the headset, through internal guides, and invisibly from the front to the rear triangle via our Cable Pass.

I-Line

Our patented I-line is the sleekest, most integrated shock lock-out on the market.

You Cant Beat Simple

Removing anything superfluous and only adding features that enhance the ride means that at 1740g, Oiz is one of the lightest XC frames out there. Light weight is key for a fast XC bike, and relentlessly pursuing the simplest solutions means Oiz doesnt need compromise anywhere else to achieve this.

Specifications

Frameset

• Frame: Orbea Oiz Carbon OMR, Fiberlink, Boost, BSA, SIC, UFO, I-line shock
• Shock: Fox Float SL Performance 120mm Remote Push-lock Evol custom tune 190x45mm
• Fork: Fox 34 Float SC Performance 120 Grip Remote Push to Lock QR15x110
• Headset: Alloy 1-1/2″, Black Oxidated Bearing

Drivetrain

• Crankset: SRAM GX Eagle Dub Lunar Boost 32t
• Shifters: SRAM GX Eagle Lunar
• Cassette: SRAM XG-1275 Eagle 10-52t 12-Speed
• Rear Derailleur: SRAM GX Eagle Lunar
• Chain: SRAM GX Eagle 12-Speed

Cockpit

• Handlebar: OC Mountain Performance MP30, Width 760mm
• Stem: OC Mountain Performance MP21, -6
• Brakes: Shimano M6100 Hydraulic Disc

Wheels

• Wheels: Oquo Mountain Performance MP28PRO
• Tires: Maxxis Rekon Race 2.40″ WT 120 TPI Exo TLR

Components

• Seatpost: OC Mountain Control MC21, 31.6mm, Dropper
• Saddle: Fizik Taiga S-alloy rail
• Grips: OC Lock On
• Remote Lockout: OC Squidlock MP20 Remote, Dropper, Suspension 3 Pos
