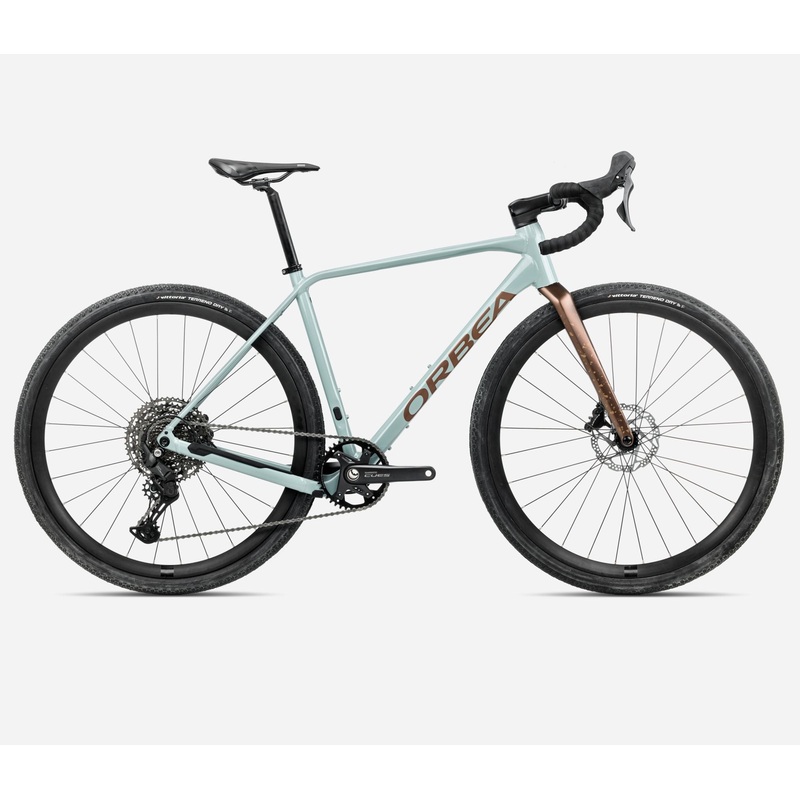

Orbea Terra H45 1X 700c

GRAVEL FROM THE GROUND UP

Designed from the ground up for gravel, Terra isn’t a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.

Features:

• Tire Clearance
  Terra can be mounted with 700c x 45 tires for speed and efficiency on dirt roads, or with 650b x 50 tires for extreme durability and high-volume comfort if you need a bit more traction.

• Drivetrain Compatibility
  Designing the frame from the ground up allowed addressing a common problem in gravel framesproviding a range of drivetrain options without compromising tire clearance.

• Lockr
  The Carbon frame offers a storage area inside the downtube, hidden behind the water bottle area, where there is space for a tube, pump, or CO2 cartridge, as well as a selection of tools.

Specifications:

• Frameset

  • Frame: Orbea Terra Hydro Disc, hydroformed triple-butted aluminium, HS 1.5″, PF, Thru Axle 12142 mm rear (thread M122 P1), DT internal cable routing, 27.2 mm seat tube, MMS system

  • Fork: Orbea Terra ICR, full carbon, tapered 1-1/8″1.5″, Thru Axle 12100 mm (thread M122 P1)

  • Steerer Tube: FSA 1-1/2″ Integrated Aluminium Cup

  Drivetrain

  • Crankset: Shimano Cues U6040, 40T

  • Shifters: Shimano U6030

  • Cassette: Shimano CS-LG400, 1150T, 11-speed

  • Rear Derailleur: Shimano Cues U6000 GS Shadow

  • Chain: Shimano LG500

  Cockpit

  • Handlebar: OC Gravel GR31-R, Rise 15, Reach 70, Drop 110

  • Stem: OC Road Performance RP22, -5

  Brakes

  • Type: Shimano U6030 Hydraulic Disc

  Wheels

  • Rims: Alloy, Tubeless-ready, 700c, 21c internal width

  • Tyres: Vittoria Terreno Dry Gravel, 70038c

  • Front Axle: Orbea Thru Axle 12100 mm (M122 P1, solid)

  • Rear Axle: Orbea Thru Axle 12142 mm (M122 P1, solid, inner threaded)

  Components

  • Seatpost: SP 0.2 Carbon, 27.2 mm, Setback 20 mm

  • Saddle: Prologo Akero AGX, black rails, 155 mm width

  Accessories

  • Handlebar Tape: Orbea EVA

Orbea reserve the right to make changes to the product and component information appearing on their site at any time without notice, including with respect to equipment, specifications, models, colors, and materials
