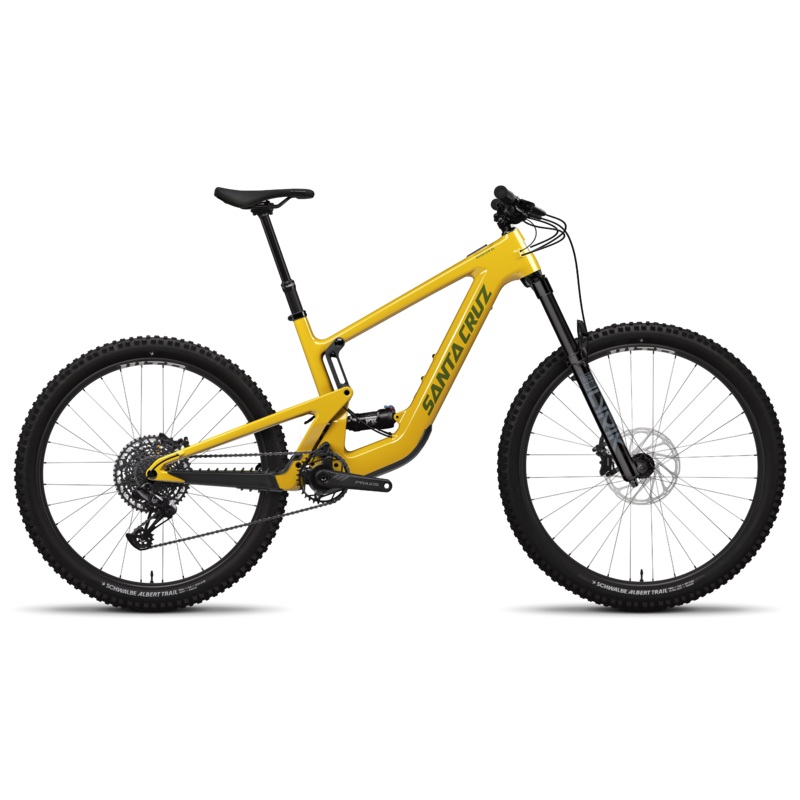

The Santa Cruz Heckler SL R 2025is built to offer the ultimate e-bike experience with itslightweight carbon C frame,150mm VPP suspension, and theFAZUA RIDE 60 drive unit. Featuring mixed wheel sizes, this bike delivers incredible handling while maintaining power and efficiency on challenging trails. The430Wh integrated batteryensures you get the most out of your ride. With high-end components like theRockShox Lyrik fork,Schwalbe tires, andSRAM drivetrain, the Heckler SL R 2025 is a versatile and powerful trail companion, combining agility with the benefits of e-bike assistance.
Standout Features
- Carbon C Frame Lightweight, strong, and optimized for trail performance
- VPP Suspension 150mm rear travel for efficient pedaling and control
- FAZUA RIDE 60 Drive Unit Efficient and smooth power delivery
- 430Wh Integrated Battery Long-lasting battery for extended range
- Mixed Wheel Size 29 front and 27.5 rear for excellent balance
- Shock Choices FOX Float Rhythm or FOX Float Performance
Frame
- Material:Carbon C
- Rear Travel:150mm (VPP)
- Wheel Size:MX (29 front / 27.5 rear)
- Weight:44.13 lbs / 20.02 kg
Suspension
- Fork:RockShox Lyrik Base, 160mm
- Shock:FOX Float Rhythm, 210×55 or FOX Float Performance, 210×55
Drivetrain
- Cassette:SRAM PG1230, 12-speed, 11-50t
- Chain:SRAM NX Eagle, 12-speed
- Crankset:e13 Helix eSpec, 165mm
- Rear Derailleur:SRAM NX Eagle, 12-speed
- Shifter:SRAM NX
- Chainguide:OneUp Chainguide
Brakes
- Brakes:SRAM DB8 Stealth
- Front Rotor:SRAM Centerline, 200mm
- Rear Rotor:SRAM Centerline, 200mm
Cockpit
- Grips:Santa Cruz House Grips
- Handlebars:e13 TRS Base
- Stem:e13 Base, 40mm or RaceFace Chester, 40mm
- Headset:FSA IS-2/47/42 ACB or Cane Creek 10 IS Integrated
- Seatpost:SDG Tellis Dropper, 31.6
- Saddle:SDG Bel-Air V3, Max Steel
Wheels & Tires
- Front Rim:WTB ST i30 TCS 2.0 29
- Front Hub:SRAM MTH 716, 15×110, 6-Bolt, 32h
- Front Tire:Schwalbe Albert, 29″x2.5″, Trail Radial Ultra Soft
- Rear Rim:WTB ST i30 TCS 2.0 27.5
- Rear Hub:SRAM MTH 746, 12×148, HG, 6-Bolt, 32h
- Rear Tire:Schwalbe Albert, 27.5″x2.5″, Trail Radial Soft
E-Bike System
- Drive Unit:FAZUA RIDE 60
- Battery:FAZUA 430Wh Integrated
- Charger:FAZUA Charger
Specifications
| Spec |
Detail |
| Rear Travel |
150mm |
| Fork Travel |
160mm |
| Fork Offset |
44mm |
| Shock Size |
210x55mm |
| Bottom Bracket |
Fazua DU with E-TOR spindle |
| Rear Brake Mount |
PM 200mm |
| Max Rotor Size |
220mm |
| Max Tire Clearance |
2.6 |
| Rear Spacing |
148mm |
| Rear Shock Bushing Size |
30×8 (front & rear) |
| Shock Stroke |
55mm |
| UDH Compatible |
Yes |
| Headset |
IS41 / IS52 |
| Max Chainring Size |
36t |
| Fork Axle to Crown |
571mm |
| Front Derailleur Mount |
No |
Size Guide
| Size |
Rider Height |
Bar Width |
Dropper Length |
Crank Length |
| Small |
5’1″ 5’5″ |
760800mm |
100125mm (approx) |
165mm |
| Medium |
5’5″ 5’9″ |
760800mm |
125150mm (approx) |
165mm |
| Large |
5’9″ 6’1″ |
760800mm |
150170mm (approx) |
165mm |
| X-Large |
6’0″ 6’4″ |
760800mm |
170200mm (approx) |
165mm |
| XX-Large |
6’4″ 6’7″ |
760800mm |
170200mm (approx) |
165mm |
