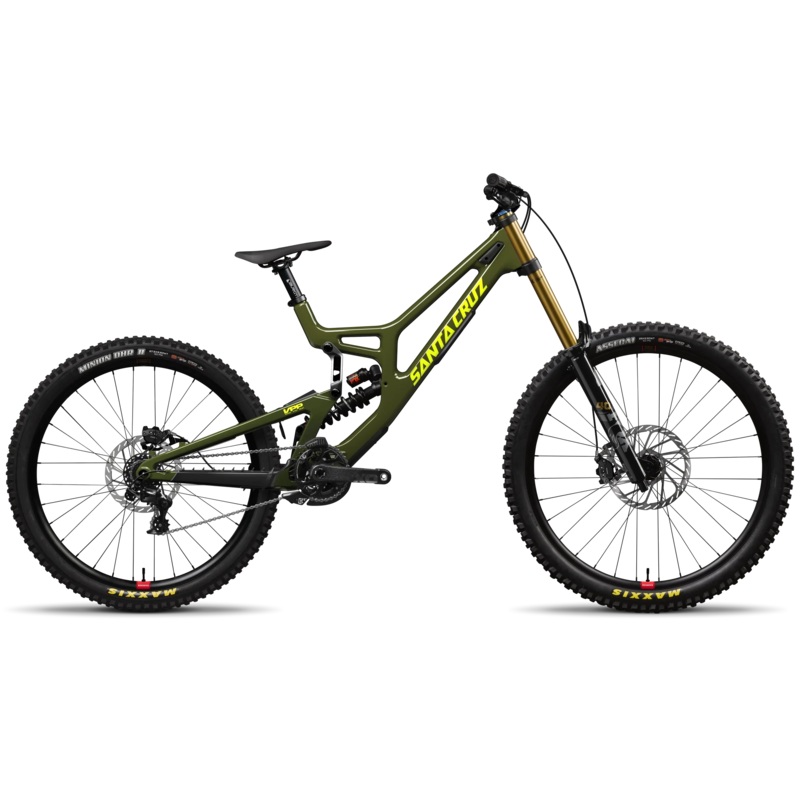

TheV10 is the very same weapon used by the Santa Cruz Syndicate to dominate World Cup podiums. A true downhill beast, now refined with flip chips, adjustable reach headset cups, and the unbeatable performance of VPP suspension.
Built from Santa Cruzs top-tier Carbon CC, the V10 is engineered for riders who live for laps, huck bigger lines, and demand nothing less than world-class performance.
Standout Features
- CC Carbon Frame Ultra-strong and lightweight
- VPP Suspension Legendary performance for traction and control
- Rear Axle Flip Chip Customize rear center for agility or stability
- Reach Adjust Headset Cups Dial in your fit with precision
- Lower Link Flip Chip Fine-tune geometry for your riding style
- Reserve 30|HD Rims Built to withstand serious punishment
Frame
- Material: Carbon CC
- Travel: 208mm rear, VPP suspension system
- Rear Axle: 12x157mm
- Weight Class: DH Racing & Bike Park abuse approved
Suspension
- Fork: FOX 40 Float Factory, Grip X2, 203mm travel
- Shock: FOX DHX2 Factory Coil, 250x75mm
Drivetrain
- Crankset: SRAM X01 DH, DUB 83, 165mm, 36T
- Bottom Bracket: SRAM DUB, 83mm threaded
- Cassette: SRAM X01 DH, 7-speed
- Rear Derailleur: SRAM X01 DH
- Shifter: SRAM X01 DH, Right
- Chain: SRAM PC1170, 11-speed
- Chainguide: E13 LG1+
Brakes
- Brakes: SRAM Maven Silver
- Front Rotor: SRAM HS2 220mm
- Rear Rotor: SRAM HS2 200mm
Cockpit
- Handlebars: OneUp Aluminum Bar
- Stem: OneUp Direct Mount
- Grips: Burgtec Bartender Pro
- Headset: Cane Creek 50 IS41 w/ Reach Adjust
- Saddle: Fizik Alpaca Gravita X5
- Seatpost: Burgtec Aluminum, 31.6mm
Wheels & Tires
- Rims: Reserve 30|HD AL 6069 (Front & Rear)
- Front Hub: Industry Nine 1/1, 20×110 Boost, 32h
- Rear Hub: Industry Nine 1/1, 12×157, XD, 32h
- Front Tire: Maxxis Minion DHR II or Assegai 29×2.5″, 3C MaxxGrip, DH casing
- Rear Tire: Maxxis Minion DHR II 27.5×2.5″, 3C MaxxGrip, DH casing
Specifications
| Spec |
Detail |
| Suspension System |
VPP |
| Rear Travel |
208mm |
| Fork Compatibility |
200203mm |
| Fork Offset |
52mm |
| Bottom Bracket Shell |
83mm Threaded |
| Rear Brake Mount |
200mm / 220mm Post |
| Rear Spacing |
12x157mm |
| Max Chainring Size |
36T |
| Max Tire Clearance |
2.5 |
| Seat Clamp Diameter |
36.4mm |
| Seat Post Diameter |
31.6mm |
| Shock Length / Stroke |
250mm x 75mm |
| Shock Bushing Size (Front) |
30x8mm |
| Shock Bushing Size (Rear) |
30x8mm |
| Front Derailleur Compatibility |
None |
| Headset |
IS41 upper / IS41 lower |
Size Guide
| Size |
Rider Height |
Reach |
| Small |
5’1″ 5’6″ |
412425 mm |
| Medium |
5’5″ 5’9″ |
447467 mm |
| Large |
5’8″ 6’1″ |
467480 mm |
| X-Large |
6’0″ 6’5″ |
492505 mm |
